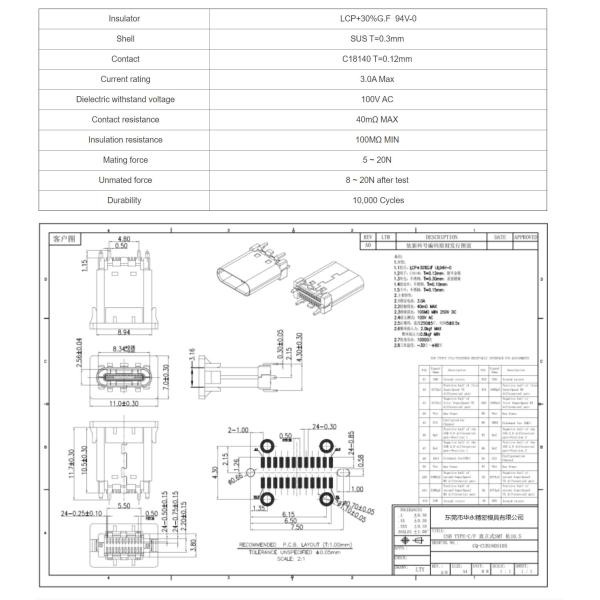

Vertical 180 Degree SMT Type 24 Pin Female USB Type C Connector

• Place of Origin:China
• Brand Name:HUAYONG
• Model Number:CQ-CUB180S105
• Type:USB
• Application:PCB, power supply, Digital products
• Gender:female
• Pins:24P
• Insulator:LCP+30%G.F 94V-0
• Shell:SUS T=0.3mm
• Contact:C18140 T=0.12mm
• Current rating:3.0A Max
• Dielectric withstand voltage:100V AC
• Contact resistance:40mΩ MAX
• Insulation resistance:100MΩ MIN
• Mating force:5 ~ 20N
• Unmated force:8 ~ 20N after test
• Durability:10,000 Cycles

Product Description

F FAQ:

1 F: Where is your factory and do you have any certificate?
A: Our factory locate in Changan town,Dongguan and we have past the ISO9001,ISO14000 and TS16949.

2 F: Do you have any qty limited?
A: Firstly for our stock products,we can arrange the shipment according to your requirement and for the specialize one,it depends on the production cost.

3 F: Can you please talk something about your quality assurance?
A: FPI completely control the income and outcome material according to the ISO system and 100% check of our parts by instrument,QC will spot check in each process at least per 2 hours and before shipment,our OQC will arrange the inspection again.

4 F: Can you modify the exiting mould according to our requirement?
A: Definitely,to save your cost and we can offer our mould for common use.

KINDLY CONTACT US WITHOUT HESITATION TO GET TIMELY PROFESSIONAL SERVICES.
